Pied de Pulse with Professor Loe Feijs

The Pied de Pulse project has two aims. The first is to study and implement a fractal-like structure of circles inspired by Apollonian circles, combined with a pied de poule (houndstooth). The second aim is to push the integration of electric actuators in garments, using the power of algorithmic design and digital manufacturing. Flat coils of copper with magnets work as vibration actuators in the garment (like the well-known rotary vibration motors, but better integrated in the garment and matching fashion production methods).

Digital embroidery-machine patterns in Tajima file format are generated by an extension of Jun Hu’s turtle graphics library Oogway. We develop an attractive fashion look based on the new pattern, to be shown at Bridges.

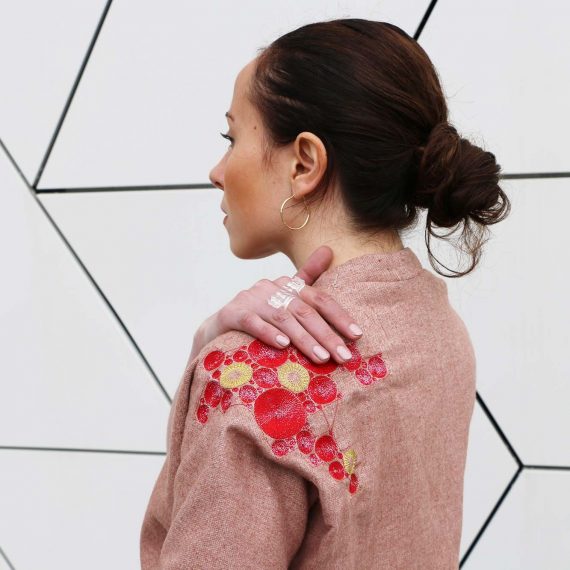

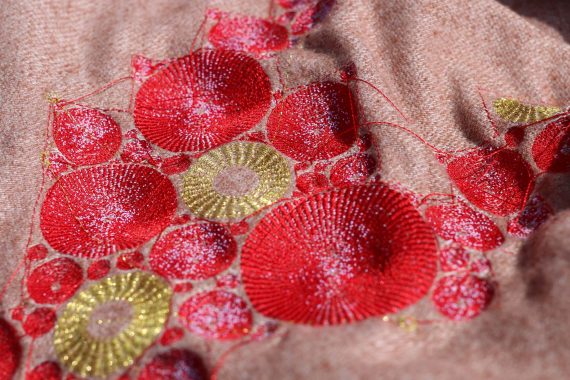

Pied_de_Pulse_0936_smallThe embroidered pattern is a synthesis of a growth algorithm to create a semi-random circle packing and the pied de poule fashion pattern  (houndstooth). The circles are packed inside a pied de poule figure. The mathematics of pied de poule is based on both Heesch Kienzle theory and a turtle graphics description. In total 150 circles are stitches, three of which are electric coils working as  actuators when combined with magnets. This  can be used for signalling events to the wearer of the jacket. We envision many possible applications: bodily parameters for sports, messages from mobile networks, friendly notifications from your garments, and so on.
The 19 x 19 cm pattern 70,000 stitches is embroidered on a PR655 embroidery machine.

Pied_de_Pulse_0954_small Pied_de_Pulse_0964_small Pied_de_Pulse_0845_small

Concept & Design: Marina Toeters & Loe Feijs (TU/e)
Styling: Giorgia Presti
Photos: Flora Macleod
Model: Anna Pagano
